Advanced Components¶
Complex components: modals, context menus, editors, pagination, filters, and upload.

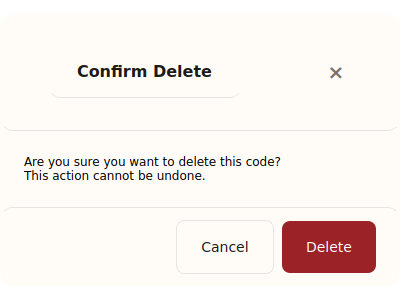

Modal¶
Material Design dialog.
from design_system import Modal, ModalHeader, ModalBody, ModalFooter
modal = Modal(size="default") # sm, default, lg, xl
# ModalHeader with title and optional close button
modal.set_header(ModalHeader(title="Confirm Action"))
# ModalBody is the content container
modal.body.addWidget(Label("Are you sure you want to proceed?"))
# ModalFooter contains action buttons
modal.add_button("Cancel", variant="outline", on_click=modal.reject)
modal.add_button("Confirm", variant="primary", on_click=modal.accept)
# Show
result = modal.exec() # Returns QDialog.Accepted or QDialog.Rejected
Modal Properties¶
| Property | Type | Default | Description |
|---|---|---|---|
size |
str | "default" |
"sm", "default", "lg", "xl" |
Modal Methods¶
| Method | Description |
|---|---|
set_header(widget) |
Set header widget |
add_button(text, variant, on_click) |
Add footer button |
exec() |
Show modal and wait |
accept() |
Accept and close |
reject() |
Reject and close |

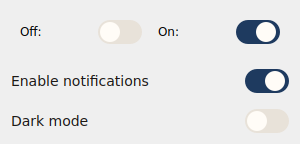

Toggle / LabeledToggle¶
Switch component.
from design_system import Toggle, LabeledToggle
toggle = Toggle()
toggle.setChecked(True)
toggle.toggled.connect(lambda checked: print(f"Toggled: {checked}"))
# LabeledToggle includes text label
labeled = LabeledToggle(label="Enable feature")
labeled.toggled.connect(lambda checked: handle_toggle(checked))
Toggle Signals¶
| Signal | Description |
|---|---|
toggled(checked) |
Toggle state changed |
ContextMenu¶
Right-click menu.
from design_system import ContextMenu
menu = ContextMenu()
menu.add_item("Edit", icon="mdi6.pencil", on_click=edit_handler)
menu.add_item("Delete", icon="mdi6.delete", variant="danger", on_click=delete_handler)
menu.add_separator()
submenu = menu.add_submenu("More Options")
submenu.add_item("Option 1", on_click=handler1)
# Show at cursor
menu.exec(QCursor.pos())
ContextMenu Methods¶
| Method | Description |
|---|---|
add_item(text, icon, variant, on_click) |
Add menu item |
add_separator() |
Add divider |
add_submenu(text) |
Add submenu |
exec(pos) |
Show at position |

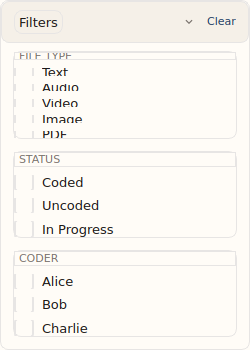

FilterPanel¶
Collapsible filter panel.
from design_system import FilterPanel, FilterSection
filters = FilterPanel()
filters.add_section("File Type", ["Text", "Audio", "Video", "Image"])
filters.add_section("Status", ["Coded", "Uncoded", "In Progress"])
filters.filters_changed.connect(lambda f: print(f"Filters: {f}"))
# Methods
current = filters.get_filters()
filters.clear_filters()
filters.set_collapsed(True)
FilterPanel Signals¶
| Signal | Description |
|---|---|
filters_changed(filters) |
Filter selection changed |
ViewToggle¶
Toggle between view modes.
from design_system import ViewToggle
toggle = ViewToggle(views=["grid", "list", "table"], current="list")
toggle.view_changed.connect(lambda view: switch_to_view(view))
toggle.set_view("grid")
current = toggle.current_view()

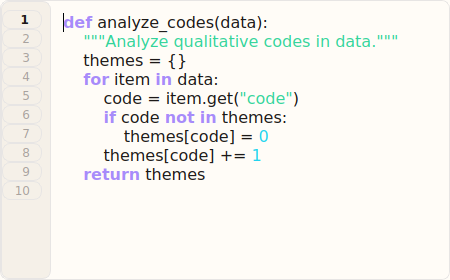

CodeEditor¶
Code editor with syntax highlighting.
from design_system import CodeEditor
editor = CodeEditor(
language="python",
read_only=False,
show_line_numbers=True
)
editor.set_code("def hello():\n print('Hello')")
code = editor.get_code()
editor.set_language("sql")
editor.code_changed.connect(lambda code: print("Code changed"))
CodeEditor Properties¶
| Property | Type | Default | Description |
|---|---|---|---|
language |
str | "python" |
Syntax language |
read_only |
bool | False |
Read-only mode |
show_line_numbers |
bool | True |
Show line numbers |

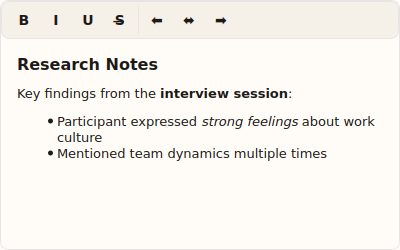

RichTextEditor¶
Rich text editor with formatting toolbar.
from design_system import RichTextEditor
editor = RichTextEditor(show_toolbar=True)
editor.set_html("<p>Hello <b>World</b></p>")
editor.set_plain_text("Plain text content")
html = editor.get_html()
text = editor.get_plain_text()
editor.content_changed.connect(lambda html: save_content(html))

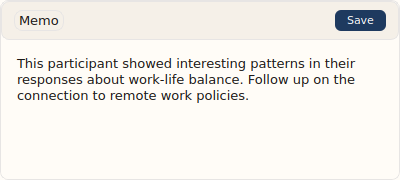

MemoEditor¶
Memo/note editor for annotations.
from design_system import MemoEditor
memo = MemoEditor(title="Research Notes")
memo.set_content("My notes here...")
content = memo.get_content()
memo.content_changed.connect(lambda text: auto_save(text))
memo.save_clicked.connect(lambda: save_memo())
Pagination¶
Page navigation.
from design_system import Pagination, SimplePagination
# Full pagination
pager = Pagination(current_page=1, total_pages=10)
pager.page_changed.connect(lambda page: load_page(page))
pager.go_to_page(5)
pager.set_total_pages(20)
# Simple prev/next
simple = SimplePagination()
simple.previous_clicked.connect(prev_handler)
simple.next_clicked.connect(next_handler)
Pagination Signals¶
| Signal | Description |
|---|---|
page_changed(page) |
Page changed |
DateRangePicker¶
Date range selection.
from design_system import DateRangePicker, QuickDateSelect
picker = DateRangePicker()
picker.range_changed.connect(lambda start, end: print(f"Range: {start} to {end}"))
# QuickDateSelect provides preset options
quick = QuickDateSelect()
quick.range_selected.connect(lambda start, end: apply_range(start, end))

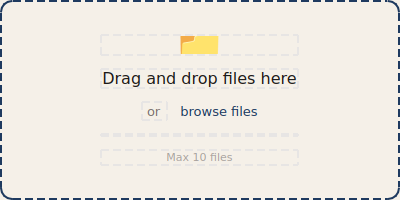

DropZone¶
Drag-and-drop file upload.
from design_system import DropZone, CompactDropZone
zone = DropZone(
accepted_types=[".txt", ".pdf", ".docx"],
max_files=10,
max_size_mb=50
)
zone.files_dropped.connect(lambda files: handle_upload(files))
zone.browse_clicked.connect(open_file_dialog)
zone.enable_drop()
zone.disable_drop()
# Compact variant
compact = CompactDropZone(accepted_types=[".txt", ".pdf"])
compact.files_dropped.connect(handle_upload)
DropZone Properties¶
| Property | Type | Default | Description |
|---|---|---|---|
accepted_types |
list | [] |
Allowed extensions |
max_files |
int | 10 |
Maximum files |
max_size_mb |
int | 50 |
Max file size (MB) |
DropZone Signals¶
| Signal | Description |
|---|---|
files_dropped(files) |
Files dropped |
browse_clicked |
Browse button clicked |
ImageAnnotationLayer¶
Image annotation with drawing tools.
from design_system import ImageAnnotationLayer, ImageAnnotation, AnnotationMode
layer = ImageAnnotationLayer()
layer.load_image("/path/to/image.jpg")
# Set drawing mode
layer.set_mode(AnnotationMode.RECTANGLE) # SELECT, RECTANGLE, POLYGON, FREEHAND
# Signals
layer.annotation_created.connect(lambda ann: print(f"Created: {ann.id}"))
layer.annotation_selected.connect(lambda id: print(f"Selected: {id}"))
layer.annotation_deleted.connect(lambda id: print(f"Deleted: {id}"))
# Methods
annotations = layer.get_annotations()
layer.clear_annotations()
layer.delete_annotation("annotation-id")
AnnotationMode¶
| Mode | Description |
|---|---|
SELECT |
Select existing annotations |
RECTANGLE |
Draw rectangles |
POLYGON |
Draw polygons |
FREEHAND |
Freehand drawing |
DiffViewer¶
Side-by-side diff viewer.
