Data Display Components¶

Components for presenting data: tables, trees, cards, and lists.

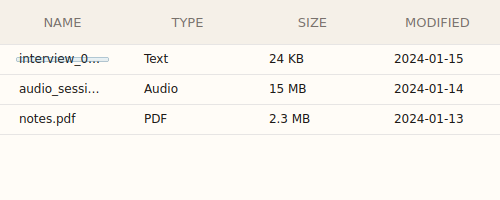

DataTable¶

Data table with selection support.

Data Table

from design_system import DataTable

table = DataTable(
    headers=["Name", "Type", "Size"],
    checkable=True  # Enable row selection
)

# Set data
table.set_data([
    {"name": "file1.txt", "type": "text", "size": "10KB"},
    {"name": "file2.pdf", "type": "pdf", "size": "2MB"},
])

# Signals
table.row_clicked.connect(lambda idx, data: print(f"Clicked row {idx}"))
table.row_double_clicked.connect(lambda idx, data: print(f"Double-clicked {idx}"))
table.selection_changed.connect(lambda selected: print(f"Selected: {selected}"))

# Methods
selected = table.get_selected()
table.clear()

DataTable Properties¶

Property	Type	Default	Description
`headers`	list	`[]`	Column headers
`checkable`	bool	`False`	Enable row selection

DataTable Signals¶

Signal	Description
`row_clicked(idx, data)`	Row clicked
`row_double_clicked(idx, data)`	Row double-clicked
`selection_changed(selected)`	Selection changed

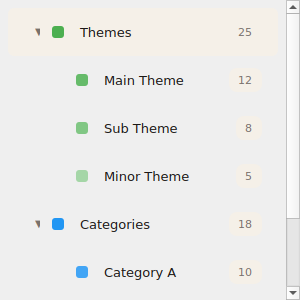

CodeTree¶

Hierarchical tree for qualitative codes.

Code Tree

from design_system import CodeTree, CodeItem, CodeTreeNode

# Define hierarchical structure using CodeItem data class
items = [
    CodeItem(
        id="1",
        name="Theme A",
        color="#FFC107",
        count=15,
        children=[
            CodeItem(id="1.1", name="Sub-theme", color="#FFD54F", count=5),
        ]
    ),
    CodeItem(id="2", name="Theme B", color="#4CAF50", count=8),
]

tree = CodeTree()
tree.set_items(items)

# Signals
tree.item_clicked.connect(lambda id: print(f"Clicked: {id}"))
tree.item_double_clicked.connect(lambda id: print(f"Edit: {id}"))
tree.item_expanded.connect(lambda id, expanded: print(f"Expanded: {id} = {expanded}"))

# Methods
tree.add_item(CodeItem("3", "New Code", "#2196F3"), parent_id="1")
tree.remove_item("3")
tree.expand_item("1", True)

CodeItem Data Class¶

from design_system import CodeItem

item = CodeItem(
    id="unique-id",
    name="Code Name",
    color="#FFC107",
    count=10,
    children=[]  # Nested CodeItems
)

CodeTree Signals¶

Signal	Description
`item_clicked(id)`	Item clicked
`item_double_clicked(id)`	Item double-clicked
`item_expanded(id, expanded)`	Item expand toggled

InfoCard¶

Information card with icon, supports collapsible content.

from design_system import InfoCard

card = InfoCard(
    icon="mdi6.information",
    title="Total Files",
    description="127 files imported",
    collapsible=True
)

# Signal for collapse state changes
card.collapsed_changed.connect(lambda collapsed: print(f"Collapsed: {collapsed}"))

InfoCard Properties¶

Property	Type	Default	Description
`icon`	str	`None`	Icon name
`title`	str	`""`	Card title
`description`	str	`""`	Card description
`collapsible`	bool	`False`	Enable collapse

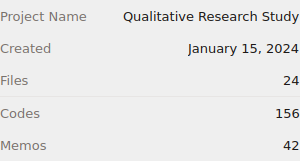

KeyValueList¶

Key-value pairs display.

Key Value List

from design_system import KeyValueList

kvlist = KeyValueList()
kvlist.set_items([
    ("Name", "Project Alpha"),
    ("Created", "2024-01-15"),
    ("Files", "42"),
])

KeyValueList Methods¶

Method	Description
`set_items(items)`	Set key-value pairs
`add_item(key, value)`	Add single pair
`clear()`	Clear all items

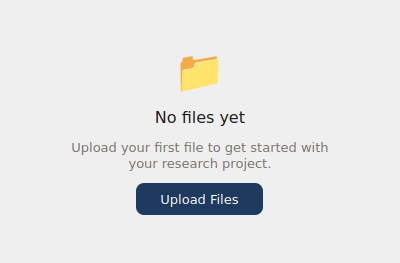

EmptyState¶

Placeholder for empty content.

Empty State

from design_system import EmptyState

empty = EmptyState(
    icon="mdi6.folder-open",
    title="No files yet",
    description="Import files to get started"
)

EmptyState Properties¶

Property	Type	Default	Description
`icon`	str	`None`	Icon name
`title`	str	`""`	Empty state title
`description`	str	`""`	Explanatory text

HeatMapGrid / HeatMapCell¶

Heatmap visualization with interactive cells.

from design_system import HeatMapGrid, HeatMapCell

grid = HeatMapGrid(rows=5, cols=5)
grid.set_value(row=0, col=0, value=0.8)

# Signal for cell interaction
grid.cell_clicked.connect(lambda row, col, value: print(f"Cell ({row},{col}): {value}"))

# Individual cell
cell = HeatMapCell(value=0.5)
cell.clicked.connect(lambda value: print(f"Value: {value}"))

CodeDetailCard¶

Detailed code information card with actions.

from design_system import CodeDetailCard

card = CodeDetailCard(
    code_name="Theme A",
    code_color="#FFC107",
    description="Description of the code",
    count=15
)

# Signals
card.edit_clicked.connect(lambda: edit_code())
card.delete_clicked.connect(lambda: delete_code())

FileCell / EntityCell¶

Table cell widgets for file and entity display.

from design_system import FileCell, EntityCell

# File cell with icon
file_cell = FileCell(filename="document.txt", file_type="text")
file_cell.clicked.connect(lambda: open_file())

# Entity cell
entity_cell = EntityCell(name="Person A", entity_type="participant")
entity_cell.clicked.connect(lambda: show_entity())

StatRow¶

Statistics row display.

from design_system import StatRow

row = StatRow()
row.add_stat("Files", "42")
row.add_stat("Codes", "15")
row.add_stat("Cases", "8")
