Document Components¶

Document display and editing components.

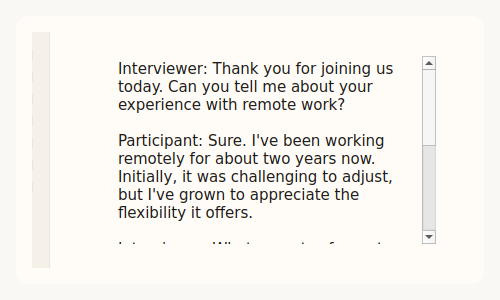

TextPanel¶

Text document display with optional line numbers.

Text Panel

from design_system import TextPanel, LineNumberArea

panel = TextPanel(
    title="Interview Transcript",
    badge_text="Coded",
    show_header=True,
    editable=False,
    show_line_numbers=True
)

panel.set_text("Document content here...")
text = panel.get_text()
panel.set_stats([("Words", "1,234"), ("Codes", "15")])

panel.text_selected.connect(lambda text, start, end: print(f"Selected: {text}"))

TextPanel Properties¶

Property	Type	Default	Description
`title`	str	`""`	Panel title
`badge_text`	str	`None`	Status badge
`show_header`	bool	`True`	Show header
`editable`	bool	`False`	Allow editing
`show_line_numbers`	bool	`True`	Show line numbers

TextPanel Methods¶

Method	Description
`set_text(text)`	Set document content
`get_text()`	Get document content
`set_stats(stats)`	Set stat pairs

TextPanel Signals¶

Signal	Description
`text_selected(text, start, end)`	Text selected

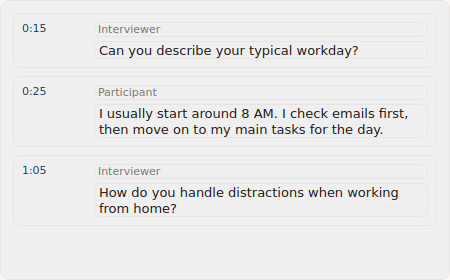

TranscriptPanel¶

Transcript display with segments.

Transcript Panel

from design_system import TranscriptPanel, TranscriptSegment

panel = TranscriptPanel()

# TranscriptSegment data class for transcript entries
panel.add_segment(TranscriptSegment(
    speaker="Interviewer",
    timestamp="00:00:15",
    text="Can you describe your experience?"
))
panel.add_segment(TranscriptSegment(
    speaker="Participant",
    timestamp="00:00:20",
    text="Well, I started by..."
))

TranscriptSegment Data Class¶

from design_system import TranscriptSegment

segment = TranscriptSegment(
    speaker="Speaker Name",
    timestamp="00:00:00",
    text="Segment content"
)

TranscriptPanel Methods¶

Method	Description
`add_segment(segment)`	Add transcript segment
`clear()`	Clear all segments

SelectionPopup¶

Context popup for text selections.

from design_system import SelectionPopup

popup = SelectionPopup()
popup.add_action("Apply Code", lambda: apply_code())
popup.add_action("Add Memo", lambda: add_memo())
popup.show_at(x, y)

SelectionPopup Methods¶

Method	Description
`add_action(label, callback)`	Add action button
`show_at(x, y)`	Show at coordinates
`hide()`	Hide popup

TextColor¶

Text color class for text highlighting.

from design_system import TextColor

color = TextColor(foreground="#000000", background="#FFFF00")

TextColor Properties¶

Property	Type	Description
`foreground`	str	Text color
`background`	str	Background color

Document Viewer Example¶

Complete document viewer with coding:

from design_system import (
    Panel, PanelHeader, TextPanel, SelectionPopup,
    CodeTree, Button
)

class DocumentViewer(Panel):
    def __init__(self):
        super().__init__()

        # Header
        self.add_widget(PanelHeader(title="Document"))

        # Text panel
        self.text_panel = TextPanel(
            show_header=True,
            editable=False,
            show_line_numbers=True
        )
        self.text_panel.text_selected.connect(self.on_selection)
        self.add_widget(self.text_panel)

        # Selection popup
        self.popup = SelectionPopup()
        self.popup.add_action("Apply Code", self.apply_code)
        self.popup.add_action("Add Memo", self.add_memo)

        self.selected_text = ""
        self.selection_range = (0, 0)

    def load_document(self, text, title="Document"):
        self.text_panel.set_text(text)

    def on_selection(self, text, start, end):
        self.selected_text = text
        self.selection_range = (start, end)

        # Show popup near selection
        cursor_pos = self.text_panel.cursor_position()
        self.popup.show_at(cursor_pos.x(), cursor_pos.y())

    def apply_code(self):
        self.popup.hide()
        # Open code selection dialog
        print(f"Apply code to: {self.selected_text}")

    def add_memo(self):
        self.popup.hide()
        # Open memo editor
        print(f"Add memo for: {self.selected_text}")
