Feedback Components¶

User feedback components: spinners, toasts, progress bars, and stat cards.

Spinner / LoadingIndicator / LoadingOverlay¶

Loading spinners.

Loading Indicators

from design_system import Spinner, LoadingIndicator, LoadingOverlay

# Simple Spinner widget
spinner = Spinner(size=24, color="#009688")
spinner.start()
spinner.stop()

# LoadingIndicator combines spinner with text
loading = LoadingIndicator(text="Loading files...")
loading.start()
loading.stop()

# LoadingOverlay covers parent widget with loading state
overlay = LoadingOverlay(parent=main_window)
overlay.show()
# ... loading ...
overlay.hide()

Spinner Properties¶

Property	Type	Default	Description
`size`	int	`24`	Spinner diameter
`color`	str	`None`	Spinner color

LoadingIndicator Properties¶

Property	Type	Default	Description
`text`	str	`""`	Loading message

SkeletonLoader¶

Skeleton loading placeholder.

from design_system import SkeletonLoader

skeleton = SkeletonLoader(width=200, height=20)

SkeletonLoader Properties¶

Property	Type	Default	Description
`width`	int	`100`	Skeleton width
`height`	int	`20`	Skeleton height

Toast¶

Popup notifications.

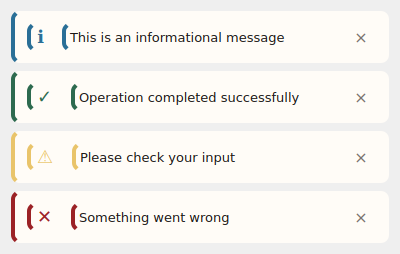

Toast Variants

from design_system import Toast, ToastManager, ToastContainer

# Show toast
toast = Toast(
    message="File saved successfully",
    variant="success",  # success, error, warning, info
    duration=3000,      # ms, 0 for infinite
    closable=True
)
toast.show_toast()

# Using manager (handles positioning)
ToastManager.show("Operation complete", variant="success")

# ToastContainer manages multiple toasts with stacking
container = ToastContainer(parent=window)
container.add_toast(toast)

Toast Properties¶

Property	Type	Default	Description
`message`	str	required	Toast message
`variant`	str	`"info"`	Visual style
`duration`	int	`3000`	Display time (ms)
`closable`	bool	`True`	Show close button

Toast Variants¶

Variant	Color	Use Case
`success`	Green	Success messages
`error`	Red	Error messages
`warning`	Yellow	Warnings
`info`	Blue	Information

ProgressBar¶

Progress indicator.

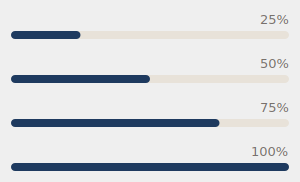

Progress Bars

from design_system import ProgressBar, ProgressBarLabeled, ProgressBarWidget

# Simple progress
progress = ProgressBar()
progress.setValue(50)
progress.setMaxValue(100)

# With label
labeled = ProgressBarLabeled(label="Importing files...")
labeled.setValue(75)

# Base widget
widget = ProgressBarWidget()
widget.setValue(60)

ProgressBar Methods¶

Method	Description
`setValue(value)`	Set current value
`setMaxValue(value)`	Set maximum value
`value()`	Get current value

RelevanceScoreBar¶

Score indicator bar for 0-1 relevance values.

from design_system import RelevanceScoreBar, RelevanceBarWidget, ScoreIndicator

# Simple relevance bar
bar = RelevanceScoreBar(score=0.85)
bar.set_score(0.92)

# Variants: default, success, warning, error
bar = RelevanceScoreBar(score=0.75, variant="success")

# Container widget
relevance = RelevanceBarWidget()
relevance.set_score(0.68)

# Visual score indicator
indicator = ScoreIndicator(score=0.9)
indicator.set_score(0.5)

RelevanceScoreBar Properties¶

Property	Type	Default	Description
`score`	float	`0`	Score value (0-1)
`variant`	str	`"default"`	Visual style

StatCard¶

Statistics display with trend.

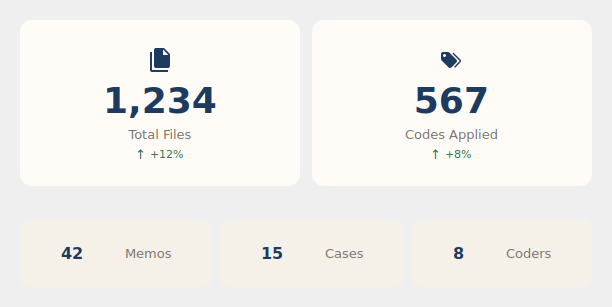

Stat Cards

from design_system import StatCard, StatCardRow, MiniStatCard

card = StatCard(
    value="1,234",
    label="Total Codes",
    trend="+12%",
    trend_direction="up",  # or "down"
    icon="mdi6.tag",
    color="#009688"
)

# StatCardRow arranges multiple stats horizontally
row = StatCardRow()
row.add_stat(StatCard(value="100", label="Files"))
row.add_stat(StatCard(value="25", label="Codes"))

# MiniStatCard is a compact version for dashboards
mini = MiniStatCard(value="42", label="Files")

StatCard Properties¶

Property	Type	Default	Description
`value`	str	required	Display value
`label`	str	required	Stat label
`trend`	str	`None`	Trend text (e.g., "+12%")
`trend_direction`	str	`None`	`"up"` or `"down"`
`icon`	str	`None`	Icon name
`color`	str	`None`	Accent color

Feedback Example¶

Loading state management:

from design_system import (
    Panel, LoadingOverlay, ProgressBarLabeled,
    Toast, ToastManager
)

class DataLoader(Panel):
    def __init__(self):
        super().__init__()

        # Loading overlay
        self.overlay = LoadingOverlay(parent=self)

        # Progress bar
        self.progress = ProgressBarLabeled(label="Loading...")
        self.progress.hide()
        self.add_widget(self.progress)

    def start_loading(self, total_items):
        self.overlay.show()
        self.progress.show()
        self.progress.setMaxValue(total_items)
        self.progress.setValue(0)

    def update_progress(self, current, message=""):
        self.progress.setValue(current)
        if message:
            self.progress.set_label(message)

    def finish_loading(self, success=True):
        self.overlay.hide()
        self.progress.hide()

        if success:
            ToastManager.show("Data loaded successfully", variant="success")
        else:
            ToastManager.show("Failed to load data", variant="error")
