Form Components¶

User input components: search boxes, selects, textareas, and pickers.

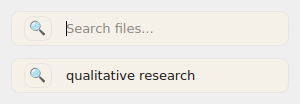

Search input with icon.

SearchBox States

from design_system import SearchBox

search = SearchBox(placeholder="Search files...")

# Signals
search.text_changed.connect(lambda text: print(f"Typing: {text}"))
search.search_submitted.connect(lambda text: print(f"Search: {text}"))

# Methods
text = search.text()
search.setText("query")
search.clear()

Signal	Description
`text_changed(text)`	Emitted as user types
`search_submitted(text)`	Emitted on Enter press

Select¶

Dropdown selection.

Select Dropdown

from design_system import Select

select = Select(placeholder="Choose option...")
select.add_items(["Option 1", "Option 2", "Option 3"])
select.value_changed.connect(lambda value: print(f"Selected: {value}"))

Select Methods¶

Method	Description
`add_items(items)`	Add list of options
`current_value()`	Get selected value
`set_value(value)`	Set selected value
`clear()`	Clear selection

Select Signals¶

Signal	Description
`value_changed(value)`	Emitted when selection changes

MultiSelect¶

Multiple selection dropdown.

from design_system import MultiSelect

multi = MultiSelect()
multi.add_items(["Tag 1", "Tag 2", "Tag 3"])
# User can select multiple items

MultiSelect Methods¶

Method	Description
`add_items(items)`	Add options
`selected_items()`	Get selected values
`set_selected(items)`	Set selected values

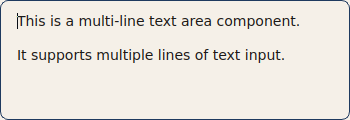

Textarea¶

Multi-line text input.

Textarea

from design_system import Textarea

textarea = Textarea(placeholder="Enter description...")
text = textarea.toPlainText()
textarea.setPlainText("Content here")

Textarea Properties¶

Property	Type	Default	Description
`placeholder`	str	`""`	Placeholder text

NumberInput¶

Numeric input with spin controls.

from design_system import NumberInput

number = NumberInput(minimum=0, maximum=100, value=50)

NumberInput Properties¶

Property	Type	Default	Description
`minimum`	int	`0`	Minimum value
`maximum`	int	`100`	Maximum value
`value`	int	`0`	Initial value

RangeSlider¶

Range selection slider.

from design_system import RangeSlider

slider = RangeSlider(minimum=0, maximum=100)
slider.valueChanged.connect(lambda value: print(f"Value: {value}"))

RangeSlider Properties¶

Property	Type	Default	Description
`minimum`	int	`0`	Minimum value
`maximum`	int	`100`	Maximum value

ColorPicker¶

Color selection widget.

Color Picker

from design_system import ColorPicker

picker = ColorPicker()
picker.color_changed.connect(lambda color: print(f"Color: {color}"))

ColorPicker Signals¶

Signal	Description
`color_changed(color)`	Emitted when color selected

FormGroup¶

Grouped form fields with label.

Form Groups

from design_system import FormGroup, Input

group = FormGroup(label="User Details")
group.add_widget(Input(placeholder="Name"))
group.add_widget(Input(placeholder="Email"))

FormGroup Properties¶

Property	Type	Default	Description
`label`	str	`""`	Group label

CoderSelector¶

Coder/user selection dropdown.

from design_system import CoderSelector

selector = CoderSelector()
# Populated with available coders

Form Example¶

Complete form with validation:

from PySide6.QtWidgets import QWidget, QVBoxLayout
from design_system import (
    Card, CardHeader, FormGroup, Input, Select,
    Textarea, Button, Label
)

class ContactForm(QWidget):
    def __init__(self):
        super().__init__()
        layout = QVBoxLayout(self)

        card = Card()
        card.add_widget(CardHeader(title="Contact Form"))

        # Name field
        name_group = FormGroup(label="Name")
        self.name_input = Input(placeholder="Enter your name")
        name_group.add_widget(self.name_input)
        card.add_widget(name_group)

        # Category select
        category_group = FormGroup(label="Category")
        self.category_select = Select(placeholder="Select category")
        self.category_select.add_items(["General", "Support", "Sales"])
        category_group.add_widget(self.category_select)
        card.add_widget(category_group)

        # Message
        message_group = FormGroup(label="Message")
        self.message_input = Textarea(placeholder="Enter your message")
        message_group.add_widget(self.message_input)
        card.add_widget(message_group)

        # Submit button
        submit_btn = Button("Submit", variant="primary")
        submit_btn.clicked.connect(self.submit)
        card.add_widget(submit_btn)

        layout.addWidget(card)

    def submit(self):
        name = self.name_input.text()
        category = self.category_select.current_value()
        message = self.message_input.toPlainText()

        if not name:
            self.name_input.set_error(True)
            return

        print(f"Submitted: {name}, {category}, {message}")
