Layout Components¶

Application structure components: containers, panels, sidebars, and toolbars.

AppContainer¶

Main application container with section management.

from design_system import AppContainer, TitleBar, MenuBar, Toolbar, StatusBar, MainContent

app = AppContainer()
app.set_title_bar(TitleBar(title="QualCoder"))
app.set_menu_bar(MenuBar())
app.set_toolbar(Toolbar())
app.set_content(MainContent())  # Central content area
app.set_status_bar(StatusBar())

AppContainer Methods¶

Method	Description
`set_title_bar(widget)`	Set the title bar
`set_menu_bar(widget)`	Set the menu bar
`set_toolbar(widget)`	Set the toolbar
`set_content(widget)`	Set central content
`set_status_bar(widget)`	Set the status bar

TitleBar¶

Application title bar.

from design_system import TitleBar

title_bar = TitleBar(title="QualCoder v2")
title_bar.set_title("New Title")

TitleBar Properties¶

Property	Type	Default	Description
`title`	str	`""`	Application title

MenuBar¶

Application menu bar container.

from design_system import MenuBar

menu_bar = MenuBar()
menu_bar.add_menu("File")
menu_bar.add_menu("Edit")
menu_bar.add_menu("View")

MenuBar Methods¶

Method	Returns	Description
`add_menu(name)`	QMenu	Add a menu

MainContent¶

Main content area container.

from design_system import MainContent

content = MainContent()
content.add_widget(panel)

Panel¶

Side panel with header.

Panel with Header

from design_system import Panel, PanelHeader

panel = Panel()
header = PanelHeader(title="Properties")
panel.add_widget(header)
panel.add_widget(content)

PanelHeader¶

from design_system import PanelHeader

header = PanelHeader(title="Section Title")

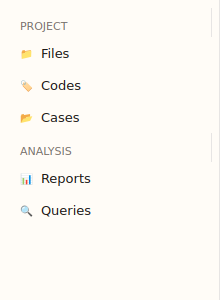

Collapsible sidebar.

Sidebar

from design_system import Sidebar

sidebar = Sidebar()
sidebar.add_widget(navigation)

Tool button container.

Toolbar

from design_system import Toolbar, ToolbarGroup, ToolbarButton

toolbar = Toolbar()

# Add groups of buttons using ToolbarGroup
file_group = ToolbarGroup()
file_group.add_widget(ToolbarButton("mdi6.folder-open", "Open"))
file_group.add_widget(ToolbarButton("mdi6.content-save", "Save"))
toolbar.add_widget(file_group)

ToolbarButton¶

from design_system import ToolbarButton

btn = ToolbarButton(icon="mdi6.play", tooltip="Play")
btn.clicked.connect(play_handler)

Property	Type	Default	Description
`icon`	str	required	Icon name
`tooltip`	str	`""`	Hover tooltip

ToolbarGroup¶

Groups related toolbar buttons together.

from design_system import ToolbarGroup, ToolbarButton

group = ToolbarGroup()
group.add_widget(ToolbarButton("mdi6.undo", "Undo"))
group.add_widget(ToolbarButton("mdi6.redo", "Redo"))

StatusBar¶

Bottom status bar.

from design_system import StatusBar, Label

status = StatusBar()
status.add_widget(Label("Ready"))

TabBar¶

Tab bar component for window/panel tabs.

from design_system import TabBar

tab_bar = TabBar()
tab_bar.add_tab("Tab 1", active=True)
tab_bar.add_tab("Tab 2")
tab_bar.tab_changed.connect(lambda index: switch_content(index))

TabBar Methods¶

Method	Description
`add_tab(name, active=False)`	Add a tab

TabBar Signals¶

Signal	Description
`tab_changed(index)`	Emitted when active tab changes

Layout Example¶

Complete application layout:

from design_system import (
    AppContainer, TitleBar, MenuBar, Toolbar, StatusBar,
    MainContent, Sidebar, Panel, PanelHeader,
    ToolbarGroup, ToolbarButton, Label
)

# Create container
app = AppContainer()

# Title bar
app.set_title_bar(TitleBar(title="QualCoder"))

# Menu bar
menu_bar = MenuBar()
menu_bar.add_menu("File")
menu_bar.add_menu("Edit")
app.set_menu_bar(menu_bar)

# Toolbar
toolbar = Toolbar()
file_group = ToolbarGroup()
file_group.add_widget(ToolbarButton("mdi6.folder-open", "Open"))
file_group.add_widget(ToolbarButton("mdi6.content-save", "Save"))
toolbar.add_widget(file_group)
app.set_toolbar(toolbar)

# Sidebar
sidebar = Sidebar()
# Add navigation items...
app.set_sidebar(sidebar)

# Main content
content = MainContent()

# Side panel
panel = Panel()
panel.add_widget(PanelHeader(title="Properties"))
panel.add_widget(Label("Content here"))
content.add_widget(panel)

app.set_content(content)

# Status bar
status = StatusBar()
status.add_widget(Label("Ready"))
app.set_status_bar(status)
