List Components¶

Collection display components for files, cases, attributes, and queues.

FileList¶

File list with type icons.

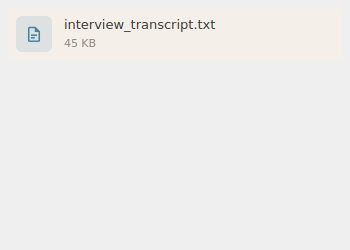

File List

from design_system import FileList

files = FileList()
files.add_file(
    id="1",
    name="interview.txt",
    file_type="text",
    size="15KB",
    status="coded"
)

files.item_clicked.connect(lambda id: print(f"Selected: {id}"))
files.item_double_clicked.connect(lambda id: print(f"Open: {id}"))

FileList Methods¶

Method	Description
`add_file(id, name, file_type, size, status)`	Add a file
`remove_file(id)`	Remove a file
`clear()`	Clear all files

FileList Signals¶

Signal	Description
`item_clicked(id)`	File clicked
`item_double_clicked(id)`	File double-clicked

CaseList¶

Case/study list.

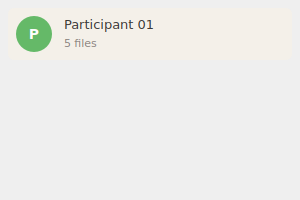

Case List

from design_system import CaseList, ListItem

cases = CaseList()
cases.add_item(ListItem(id="1", text="Case Study A", subtitle="5 files"))

AttributeList¶

Attribute list display.

from design_system import AttributeList, ListItem

attrs = AttributeList()
attrs.add_item(ListItem(id="1", text="Age", subtitle="Numeric"))

QueueList¶

Queue/task list.

from design_system import QueueList, ListItem

queue = QueueList()
queue.add_item(ListItem(
    id="1",
    text="Review coding",
    badge="3",
    badge_variant="warning"
))

ListItem¶

Data structure for list items.

from design_system import ListItem

item = ListItem(
    id="unique-id",
    text="Item Title",
    subtitle="Optional subtitle",
    icon="mdi6.file",
    badge="New",
    badge_variant="primary",
    data={"custom": "data"}
)

ListItem Properties¶

Property	Type	Default	Description
`id`	str	required	Unique identifier
`text`	str	required	Primary text
`subtitle`	str	`None`	Secondary text
`icon`	str	`None`	Icon name
`badge`	str	`None`	Badge text
`badge_variant`	str	`"default"`	Badge style
`data`	dict	`None`	Custom data

BaseList¶

Base class for all list components.

from design_system import BaseList

# Typically subclassed, provides:
# - item_clicked signal
# - item_double_clicked signal
# - Selection management

BaseList Signals¶

Signal	Description
`item_clicked(id)`	Item clicked
`item_double_clicked(id)`	Item double-clicked

List Item Widgets¶

Individual item widgets for list components.

FileListItem¶

from design_system import FileListItem

file_item = FileListItem(
    id="1",
    name="document.txt",
    file_type="text",
    size="10KB"
)

CaseListItem¶

from design_system import CaseListItem

case_item = CaseListItem(
    id="1",
    name="Case Study A",
    file_count=5
)

AttributeListItem¶

from design_system import AttributeListItem

attr_item = AttributeListItem(
    id="1",
    name="Age",
    value_type="numeric"
)

QueueListItem¶

from design_system import QueueListItem

queue_item = QueueListItem(
    id="1",
    title="Review document",
    status="pending"
)

List Example¶

File browser with filtering:

from design_system import (
    Panel, PanelHeader, FileList, SearchBox,
    MediaTypeSelector, EmptyState
)

class FileBrowser(Panel):
    def __init__(self):
        super().__init__()

        # Header with search
        header = PanelHeader(title="Files")
        self.add_widget(header)

        # Search
        self.search = SearchBox(placeholder="Search files...")
        self.search.text_changed.connect(self.filter_files)
        self.add_widget(self.search)

        # Type filter
        self.type_filter = MediaTypeSelector()
        self.add_widget(self.type_filter)

        # File list
        self.file_list = FileList()
        self.file_list.item_clicked.connect(self.on_file_selected)
        self.file_list.item_double_clicked.connect(self.on_file_opened)
        self.add_widget(self.file_list)

        # Empty state (shown when no files)
        self.empty = EmptyState(
            icon="mdi6.file-outline",
            title="No files",
            description="Import files to get started"
        )
        self.empty.hide()
        self.add_widget(self.empty)

    def set_files(self, files):
        self.file_list.clear()
        for f in files:
            self.file_list.add_file(
                id=f["id"],
                name=f["name"],
                file_type=f["type"],
                size=f["size"],
                status=f.get("status", "")
            )

        if not files:
            self.file_list.hide()
            self.empty.show()
        else:
            self.file_list.show()
            self.empty.hide()

    def filter_files(self, query):
        # Implement filtering logic
        pass

    def on_file_selected(self, file_id):
        print(f"Selected: {file_id}")

    def on_file_opened(self, file_id):
        print(f"Opening: {file_id}")
