Visualization Components¶

Data visualization: charts, graphs, word clouds, and PDF viewers.

ChartWidget¶

Charts using PyQtGraph.

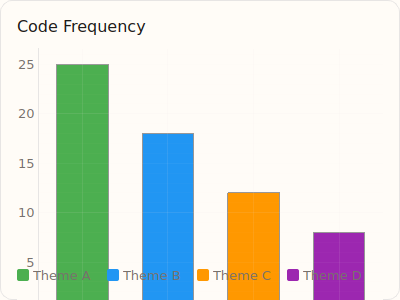

Bar Chart

from design_system import ChartWidget, ChartDataPoint

chart = ChartWidget(title="Code Frequency", subtitle="Top 10 codes")

# Bar chart using ChartDataPoint data class
chart.set_bar_data([
    ChartDataPoint(label="Theme A", value=15, color="#FFC107"),
    ChartDataPoint(label="Theme B", value=12, color="#4CAF50"),
    ChartDataPoint(label="Theme C", value=8, color="#2196F3"),
])

# Line chart
chart.set_line_data([
    ChartDataPoint(label="Jan", value=10),
    ChartDataPoint(label="Feb", value=15),
    ChartDataPoint(label="Mar", value=12),
])

# Scatter plot
chart.set_scatter_data([...])

chart.point_clicked.connect(lambda idx, data: print(f"Clicked: {data}"))
chart.clear()

ChartDataPoint¶

from design_system import ChartDataPoint

point = ChartDataPoint(
    label="Category",
    value=100,
    color="#FFC107"
)

ChartWidget Methods¶

Method	Description
`set_bar_data(data)`	Set bar chart data
`set_line_data(data)`	Set line chart data
`set_scatter_data(data)`	Set scatter plot data
`clear()`	Clear chart

ChartWidget Signals¶

Signal	Description
`point_clicked(idx, data)`	Data point clicked

PieChart¶

Pie chart specialization.

from design_system import PieChart, ChartDataPoint

pie = PieChart(title="Distribution")
pie.set_data([
    ChartDataPoint("Category A", 40, "#FFC107"),
    ChartDataPoint("Category B", 35, "#4CAF50"),
    ChartDataPoint("Category C", 25, "#2196F3"),
])

SparkLine¶

Mini inline sparkline.

from design_system import SparkLine

spark = SparkLine(data=[10, 15, 12, 18, 14, 20], color="#009688")

SparkLine Properties¶

Property	Type	Default	Description
`data`	list	`[]`	Data points
`color`	str	`None`	Line color

LegendItem¶

Chart legend item.

from design_system import LegendItem

item = LegendItem(label="Category A", color="#FFC107")

NetworkGraphWidget¶

Interactive network visualization.

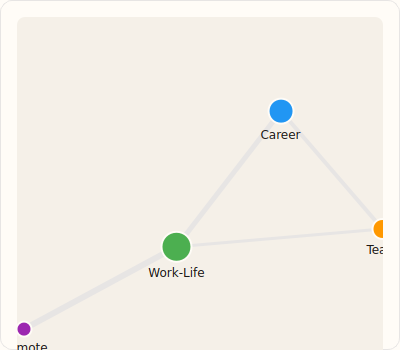

Network Graph

from design_system import NetworkGraphWidget, GraphNode, GraphEdge

graph = NetworkGraphWidget()

# Add nodes using GraphNode data class
graph.add_node(GraphNode(id="1", label="Code A", color="#FFC107", size=20))
graph.add_node(GraphNode(id="2", label="Code B", color="#4CAF50", size=15))

# Add edges using GraphEdge data class
graph.add_edge(GraphEdge(source="1", target="2", weight=5, label="co-occurs"))

# Layout algorithms: spring, circular, kamada-kawai
graph.layout("spring")

# Signals
graph.node_clicked.connect(lambda id, meta: print(f"Node: {id}"))
graph.node_double_clicked.connect(lambda id, meta: print(f"Edit: {id}"))
graph.edge_clicked.connect(lambda src, tgt: print(f"Edge: {src} -> {tgt}"))

graph.clear()

GraphNode / GraphEdge¶

from design_system import GraphNode, GraphEdge

node = GraphNode(
    id="unique-id",
    label="Node Label",
    color="#FFC107",
    size=20
)

edge = GraphEdge(
    source="node-1",
    target="node-2",
    weight=5,
    label="relationship"
)

NetworkGraphWidget Signals¶

Signal	Description
`node_clicked(id, meta)`	Node clicked
`node_double_clicked(id, meta)`	Node double-clicked
`edge_clicked(source, target)`	Edge clicked

WordCloudWidget¶

Word cloud visualization.

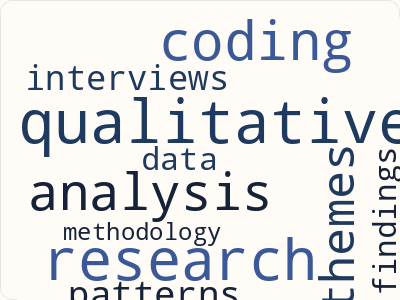

Word Cloud

from design_system import WordCloudWidget

cloud = WordCloudWidget(
    max_words=100,
    min_font_size=10,
    max_font_size=60,
    color_scheme="primary"  # primary, success, error, warning, info
)

# From word frequencies
cloud.set_frequencies({
    "qualitative": 50,
    "research": 45,
    "coding": 40,
    "analysis": 35,
})

# Or from raw text
cloud.set_text("Full text content to analyze...")

cloud.generate()
cloud.word_clicked.connect(lambda word: print(f"Word: {word}"))

WordCloudWidget Properties¶

Property	Type	Default	Description
`max_words`	int	`100`	Maximum words
`min_font_size`	int	`10`	Minimum font size
`max_font_size`	int	`60`	Maximum font size
`color_scheme`	str	`"primary"`	Color scheme

WordCloudWidget Methods¶

Method	Description
`set_frequencies(dict)`	Set word frequencies
`set_text(text)`	Set raw text
`generate()`	Generate word cloud

WordCloudPreview¶

Thumbnail preview of word cloud.

from design_system import WordCloudPreview

preview = WordCloudPreview()
preview.set_frequencies({"word": 10, "cloud": 8, "preview": 5})

PDFPageViewer¶

PDF document viewer with text selection overlay.

from design_system import PDFPageViewer, PDFSelection

viewer = PDFPageViewer(
    show_toolbar=True,      # Navigation and zoom controls
    show_thumbnails=True,   # Page thumbnail sidebar
    initial_zoom=1.0        # Starting zoom level
)

# Load document
viewer.load_document("/path/to/document.pdf")

# Navigation
viewer.go_to_page(5)        # 0-indexed
viewer.next_page()
viewer.previous_page()

# Zoom
viewer.set_zoom(1.5)        # 150%
viewer.zoom_in()            # +25%
viewer.zoom_out()           # -25%
viewer.fit_to_width()       # Auto-fit

# Signals
viewer.page_changed.connect(lambda page: print(f"Page: {page}"))
viewer.document_loaded.connect(lambda count: print(f"Pages: {count}"))
viewer.zoom_changed.connect(lambda zoom: print(f"Zoom: {zoom}"))

# Text selection (Ctrl+Click and drag)
viewer.text_selected.connect(lambda sel: handle_selection(sel))

def handle_selection(selection: PDFSelection):
    print(f"Page: {selection.page}")
    print(f"Text: {selection.text}")
    print(f"Rect: {selection.rect}")

# Properties
page = viewer.current_page   # Current page (0-indexed)
total = viewer.page_count    # Total pages
zoom = viewer.zoom           # Current zoom level

# Cleanup
viewer.close_document()

PDFPageViewer Properties¶

Property	Type	Default	Description
`show_toolbar`	bool	`True`	Show navigation toolbar
`show_thumbnails`	bool	`True`	Show page thumbnails
`initial_zoom`	float	`1.0`	Starting zoom level

PDFPageViewer Signals¶

Signal	Description
`page_changed(page)`	Page navigation
`document_loaded(count)`	Document loaded
`zoom_changed(zoom)`	Zoom level changed
`text_selected(selection)`	Text selected

PDFSelection Data Class¶

from design_system import PDFSelection

selection = PDFSelection(
    page=0,
    text="Selected text",
    rect=(x0, y0, x1, y1)
)

Note: Dependencies

PDFPageViewer requires pymupdf (PyMuPDF) for PDF rendering.
